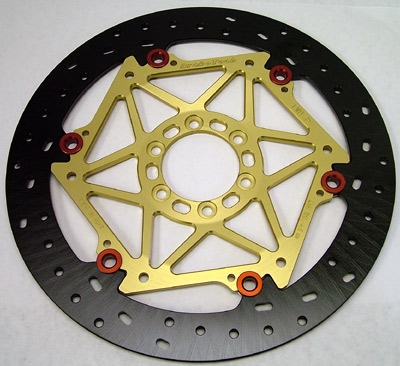

320MM X 5MM Axis Design Iron 5 Hole Mnt W/Gold Carrier R.H.
320MM X 5MM Axis Design Iron 5 Hole Mnt W/Gold Carrier R.H.

Our Price: $379.95


Product Code: BTD-30.RG
Qty:

Description

The exclusive BrakeTech AXIS™ series Ductile Iron full-floaters provides a higher coefficient of friction over stainless, with more feel and feedback at the brake lever. The patented AXIS Design floating system is many times stronger than conventional semi-floating brake rotors. The heart of this leading edge system has the floater buttons controlling radial and axial float only, they are non load-bearing. All of the considerable braking forces are channeled through the trademarked Direct-Link™ architecture, comprising over an 800% increase in surface area load transfer as compared to conventional floating brake rotors...simply far superior by design!

PRODUCT FEATURES:
  • Patented AXIS Design - featuring Direct-Link™ load transfer system
  • U.S. Patent No. 6,957,726
  • 50% greater Tensile Strength and Fatigue Strength: Ductile Iron vs Gray Iron
  • CNC machined from billet (continuous cast bar) - not porosity prone gravity cast molds
  • CRYOGENIC treatment for improved wear resistance
  • Greater thermal transfer capability than stainless steel
  • Reduced wear from shear forces - longer rotor life
  • Carriers CNC machined from premium grade billet aluminum bar - not stamped plate
  • Hard-anodized to military grade specifications
  • Made in the U.S.A.
